SKU: WS-C3650-24PDM-S

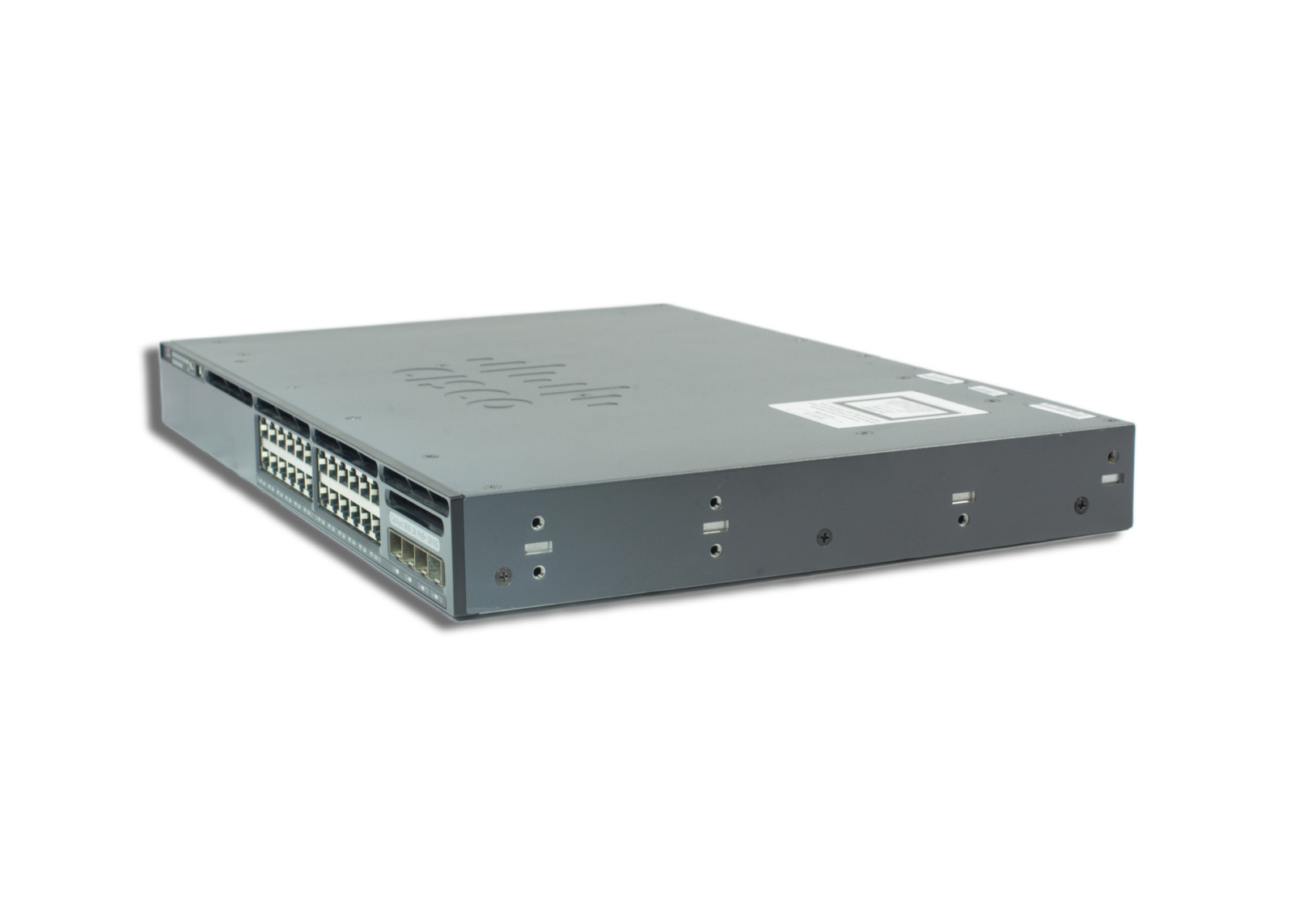

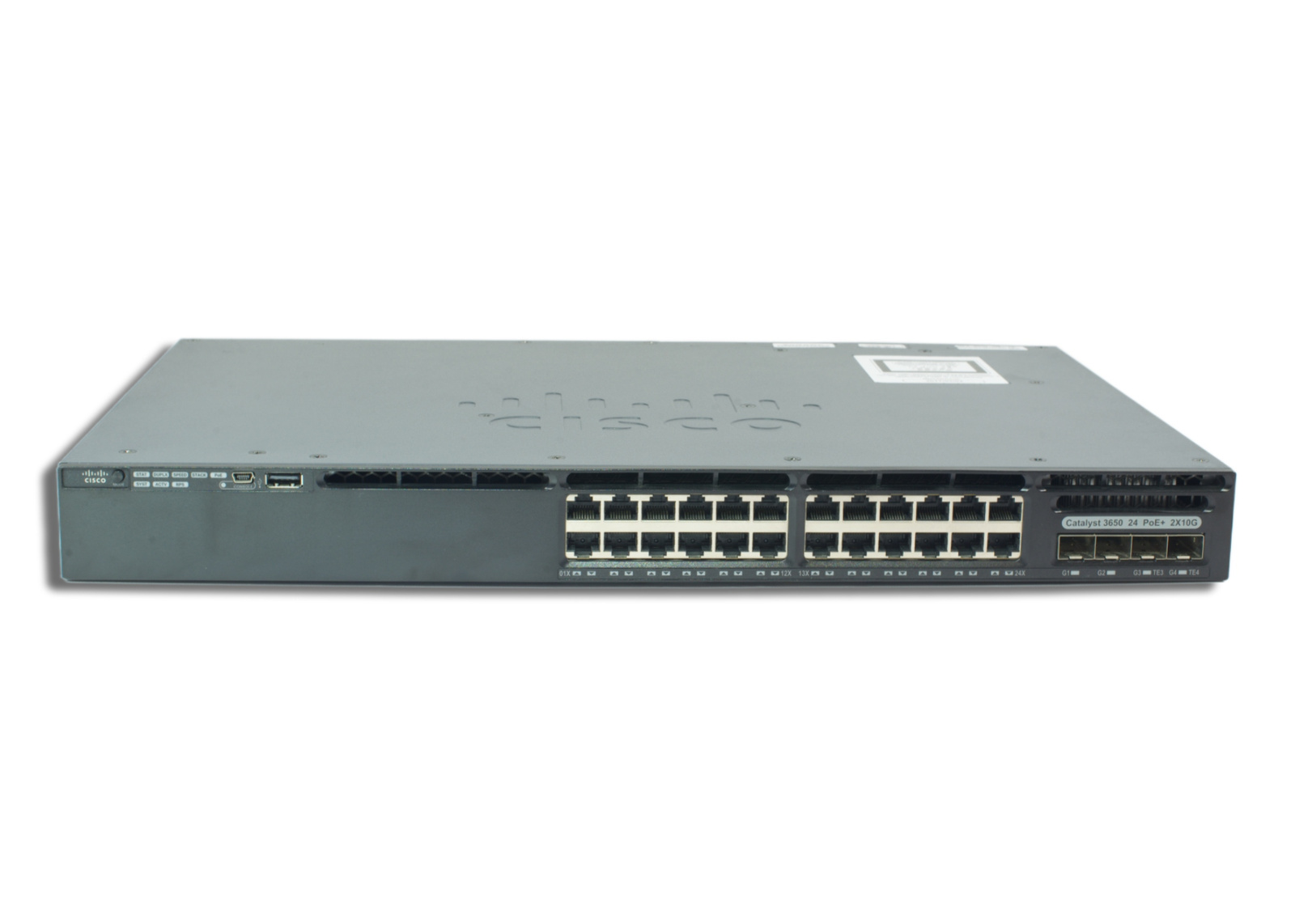

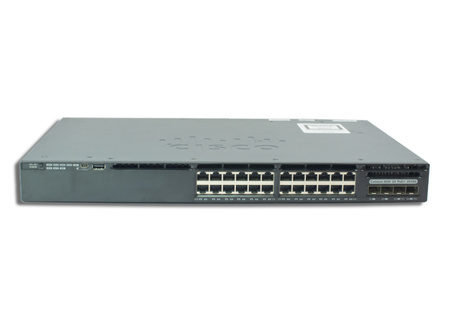

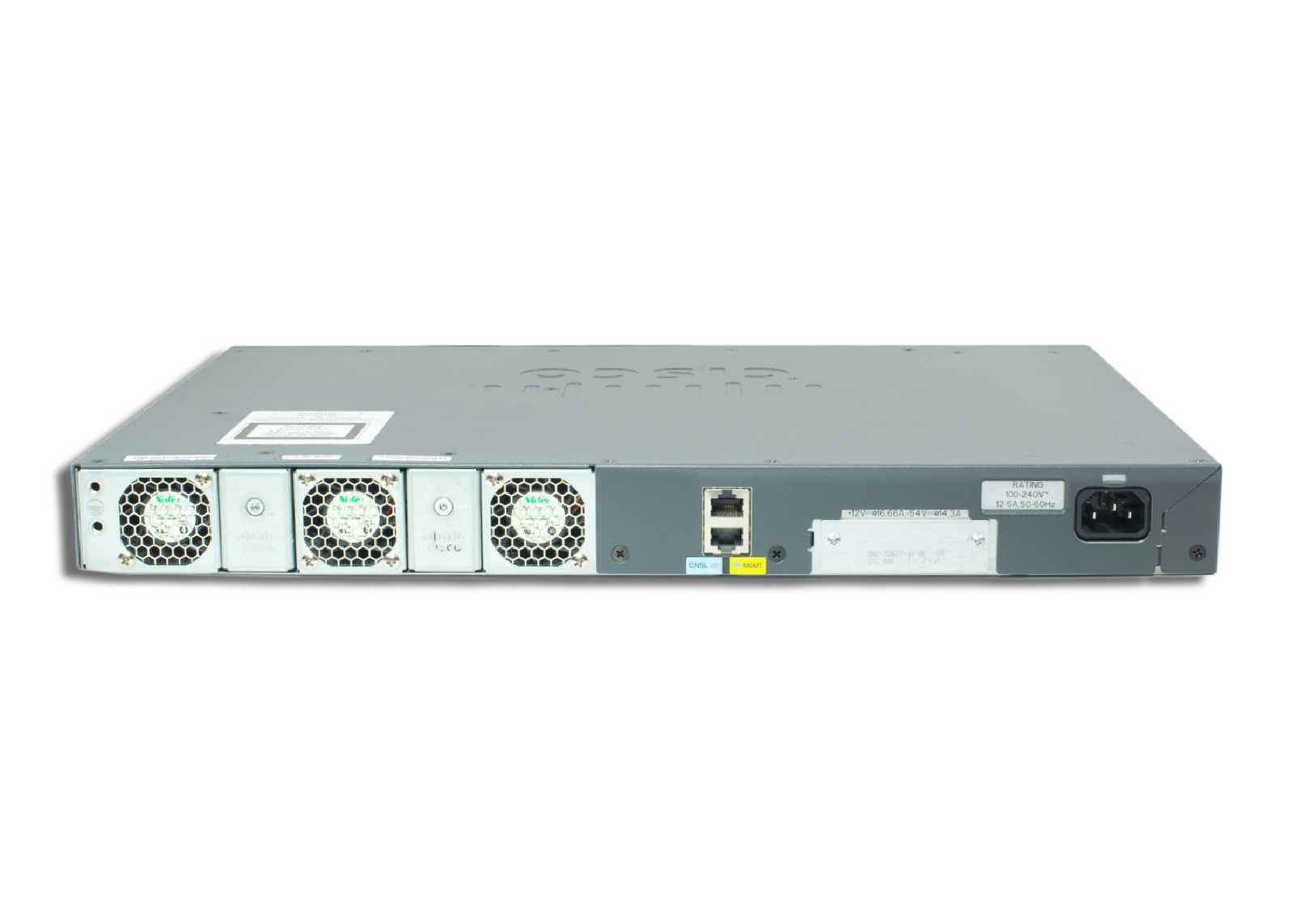

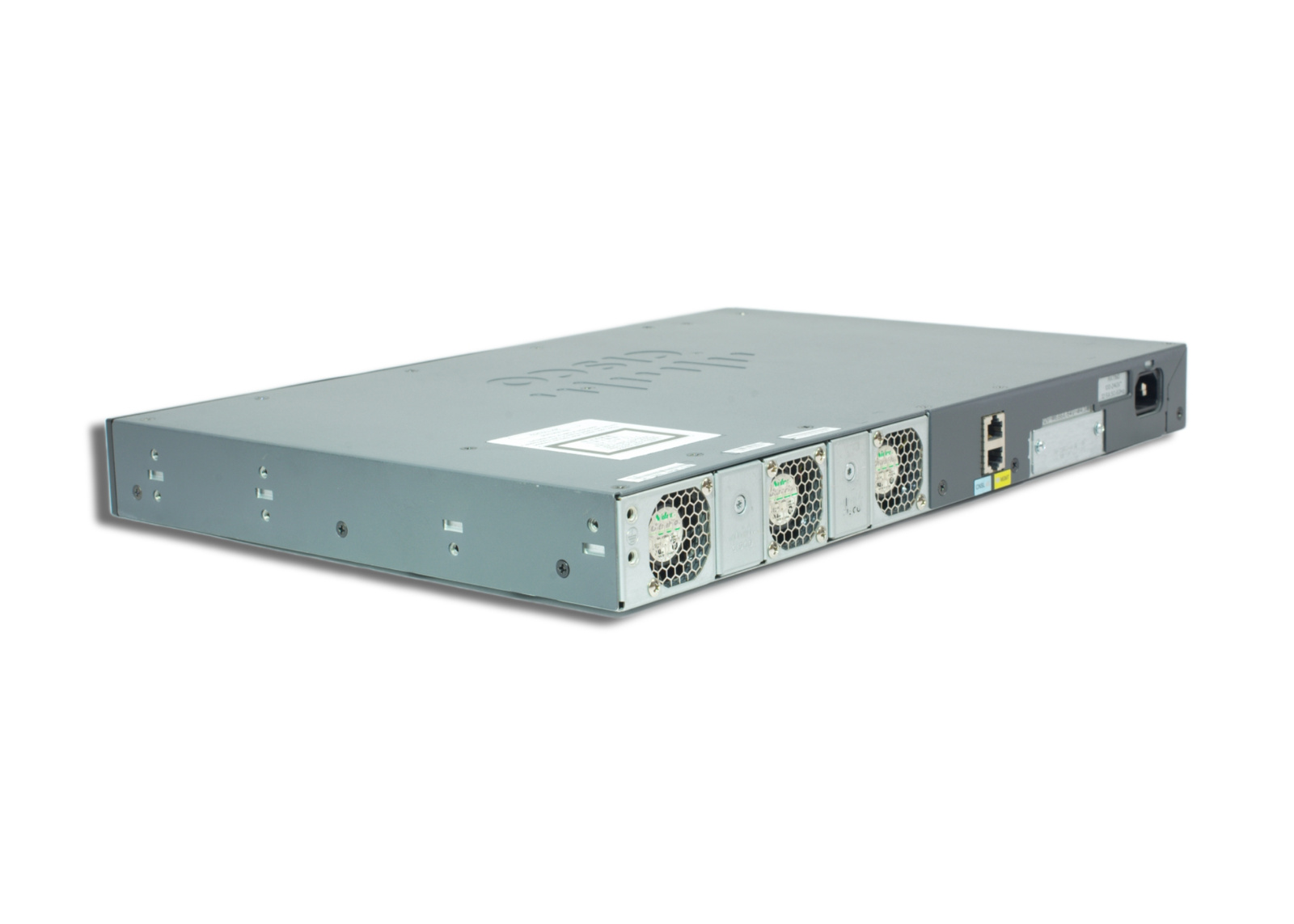

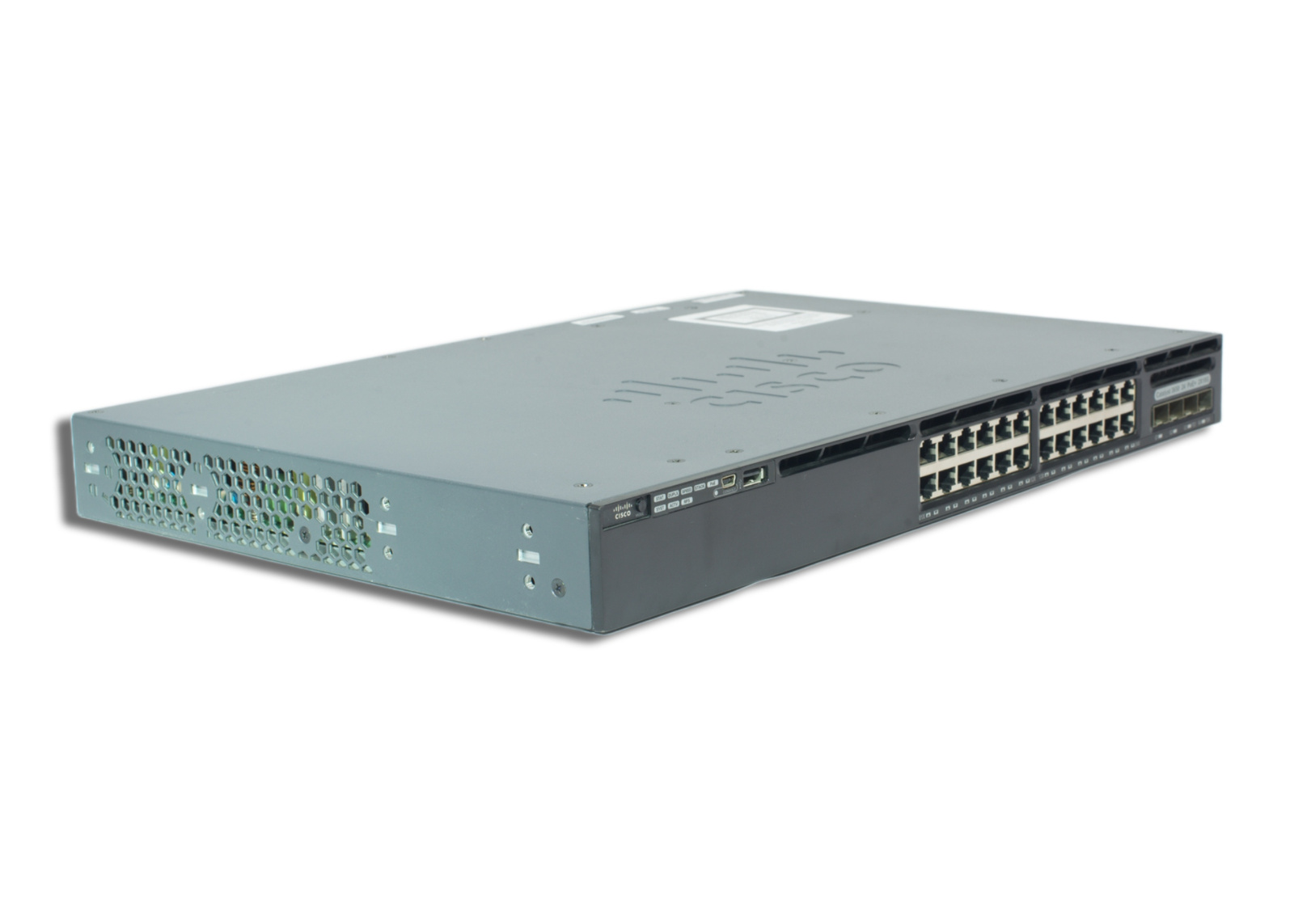

WS-C3650-24PDM-S Switch Cisco Catalyst 3650 PoE+
- Switch Cisco Catalyst 3650 Optional Stacking 24 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with fixed 640WAC power supply, 1 RU, IP Base
Unikatowy kod produktu
WS-C3650-24PDM-S
Producer
Cisco
Type of device
Switch
Product family
Cisco Catalyst
Software version
IP Base
Switching layer
3
Type of cooling
Fan
Type of dominant ports
Copper
Dominant ports speed
1G
Dominant ports quantity
24
Dominant Port Standard
RJ45
Uplink ports
Integrated
The speed of the uplink ports
10G
Number of uplink ports
2
Standard of uplink ports
SFP+
Standard PoE
PoE+
Standard IEEE
802.3at
Number of PoE ports
24
PoE power available
390W
Maximum power per port
30W
Full-duplex switching speed
92 Gbps
64-byte forwarding speed
68.45 Mpps
Maksimum VLAN count
4094
VLAN IDs available
255
Unicast MAC adres
32000
MTU
1500
Jumbo frame
9198
Network monitoring
NetFlow
Stackable
Yes
Stack module included
No
Number of switches in the stack
9
Switching speed in stack
160 Gbps
Working temperature min.
-5°C
Operating temperature max.
45°C
Working humidity min.
5%
Working humidity max.
96%
Typical noise during operation
42 dB
Noise during operation max.
45 dB
Minimal power consumption
63.8W
Maximum power consumption
76.2W
PSU power
640W
Emergency power connector
Yes
Power redundancy
No
Flash memory
2 GB
DRAM memory
4 GB
Port USB
Yes
Height
4.4 cm
Width
44.5 cm
Depth
29.6 cm
Weight
5.56 kg
MTBF
304860 h
