SKU: AR6280

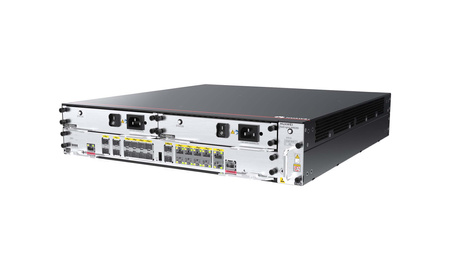

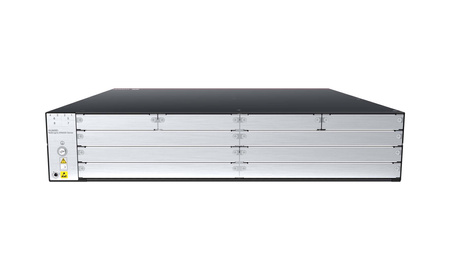

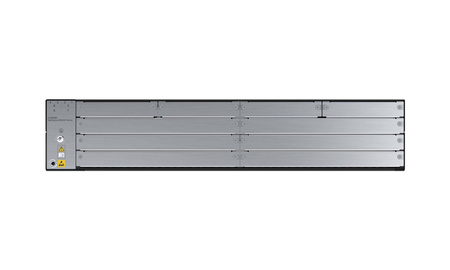

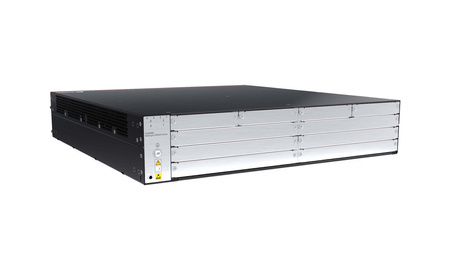

AR6280
- Router Huawei AR6280 zawiera 1x SRU slot, 4x SIC slot, 2x WSIC slot, 2x XSIC slot, 2x power slot
Unikatowy kod produktu
AR6280
Type of device
Router
Producer
Huawei
Total number of WAN ports
24
Number of WAN 10G ports
10
WAN SFP + ports quantity
14
Port USB
1
WSIC sockets quantity
4
XSIC sockets quantity
2
Number of MIC sockets
2
Performance [Gbps]
10
Flash memory [GB]
2
Maximum flash memory [GB]
4
DRAM memory [GB]
8
Maximum DRAM [GB]
16
Minimum operating temperature [°C]
0
Maximum operating temperature [°C]
45
Minimum humidity.[%]
5
Maksimum humidity[%]
95
Typical noise during operation [dB]
54,20
Minimum power consumption [W]
80
Maximum power consumption [W]
160
Redundant PSU
Yes
Redundant power supply included
No
Height [RU]
2
Height [cm]
8,81
Width [cm]
44,20
Depth [cm]
47
Weight [kg]
8,85
Your previous questions regarding this product
NetEngine AR6280 router SFP ports type sm or mm
Hello,
this router's combo SFP ports support both SM - Single Mode transceivers and MM - Multi Mode transceivers. Of course, the configuration/variety/quantity of RJ45 or SFP ports depend on which linecard - SRU - you wish to buy.
Here you can check the applicable SRU to SRU slots: NetEngine AR600, AR6100, AR6200, and AR6300 Product Documentation (huawei.com).
If you're interested in which specific Huawei transceiver would suit a particular SRU module - in that case, you need to:
- click on a link with SRU module,
- then click on "Ports" bookmark
- and then in the table, you can find links that lead to info about the specific compatible transceivers.
