SKU:
WS-C3650-12X48UR-E
- WS-C3650-12X48UR-E

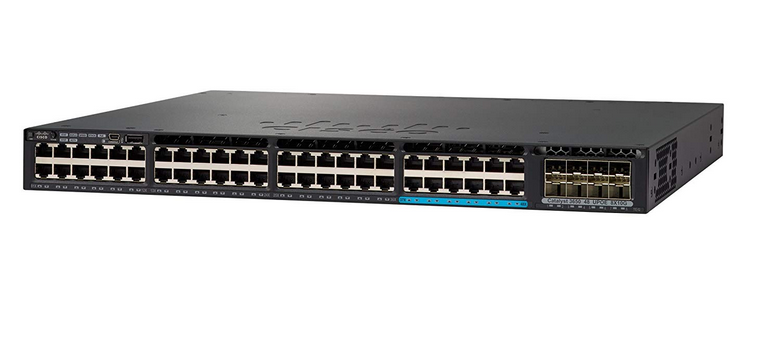

WS-C3650-12X48UR-E - 36x 1G RJ45, 12x 10G RJ45, 8x10G SFP+ Uplink, 1100W AC PSU, 1 RU, opr.IOS XE, Cisco Catalyst 3650 Switch
Unikatowy kod produktu
WS-C3650-12X48UR-E
Producer
Cisco
Type of device
Switch
Product family
Cisco Catalyst
Software version
IP Services
Switching layer
3
Type of cooling
Fan
Type of dominant ports
Copper
Dominant ports speed
1G
Dominant ports quantity
48
Dominant Port Standard
RJ45
Uplink ports
Integrated
Number of uplink ports
8x 10G SFP+
Rodzaj portów uplink
Światłowodowe
Standard PoE
UPoE
Standard IEEE
802.3bt
Number of PoE ports
48
PoE power available
660W
Maximum power per port
60W
PoE with two power supplies.
Yes
PoE power available with two power supplies
440W
Full-duplex switching speed
472 Gbps
64-byte forwarding speed
351.19 Mpps
Maksimum VLAN count
4094
VLAN IDs available
255
Unicast MAC adres
32000
MTU
1500
Jumbo frame
9198
Network monitoring
NetFlow
Stackable
Yes
Stack module included
No
Number of switches in the stack
9
Switching speed in stack
160 Gbps
Working temperature min.
-5°C
Operating temperature max.
45°C
Working humidity min.
5%
Working humidity max.
96%
Typical noise during operation
42 dB
Noise during operation max.
45 dB
Minimal power consumption
174.5W
Maximum power consumption
195.7W
PSU power
1100W
Emergency power connector
No
Power redundancy
Yes
Redundant power supply included
No
Flash memory
4 GB
DRAM memory
4 GB
Port USB
Yes
Height
4.4 cm
Width
44.5 cm
Depth
48.6 cm
Weight
8.08 kg
MTBF
201680 h
