SKU: WS-C3560X-48P-S

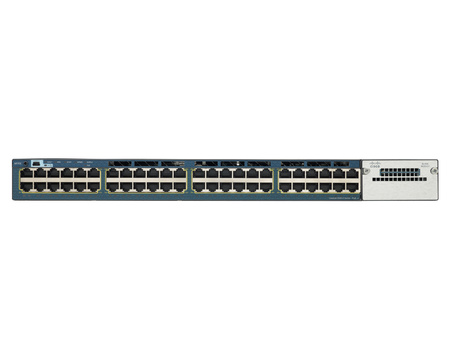

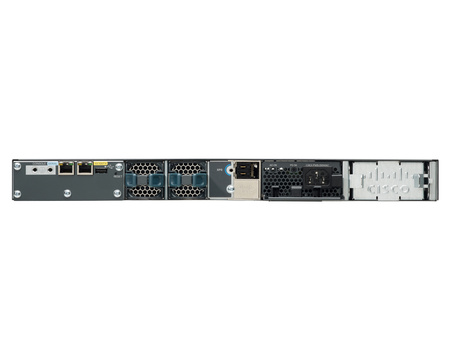

WS-C3560X-48P-S Switch Cisco Catalyst 3560X PoE+
- Switch Cisco Catalyst 3560X 48x 1GE PoE+ [435W], zasilacz 715W AC, 1 RU, IP Base
Unikatowy kod produktu
WS-C3560X-48P-S
Producer
Cisco
Type of device
Switch
Product family
Cisco Catalyst
Software version
IP Base
Switching layer
3
Type of cooling
Fan
Type of dominant ports
Copper
Dominant ports speed
1G
Dominant ports quantity
48
Dominant Port Standard
RJ45
Uplink ports
Optional
Standard PoE
PoE+
Standard IEEE
802.3at
Number of PoE ports
48
PoE power available
435W
Maximum power per port
30W
Full-duplex switching speed
160 Gbps
64-byte forwarding speed
101.2 Mpps
Maksimum VLAN count
1005
VLAN IDs available
4094
Unicast MAC adres
6000
MTU
9000
Jumbo frame
9216
Network monitoring
NetFlow
Stackable
No
Working temperature min.
-5°C
Operating temperature max.
45°C
Working humidity min.
5%
Working humidity max.
95%
Typical noise during operation
43 dB
Noise during operation max.
46 dB
Minimal power consumption
134.9W
Maximum power consumption
133.9W
PSU power
715W
Emergency power connector
No
Power redundancy
Yes
Redundant power supply included
No
Flash memory
64 MB
DRAM memory
256 MB
Port USB
Yes
Height
4.45 cm
Width
44.5 cm
Depth
46 cm
Weight
7.4 kg
MTBF
149594 h
