SKU: WS-C3560E-48PD-SF

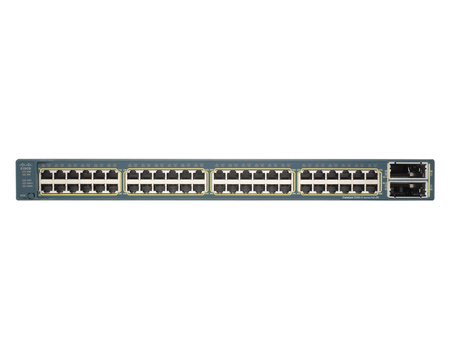

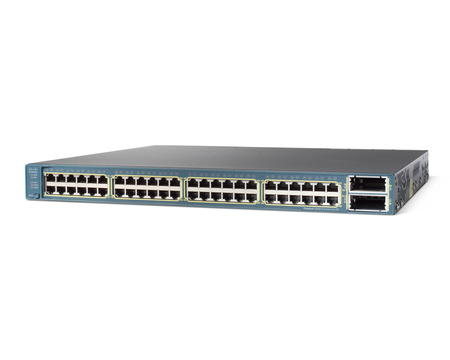

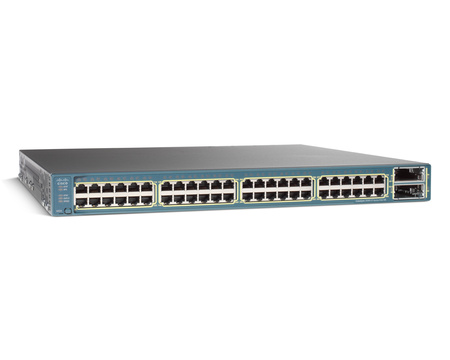

WS-C3560E-48PD-SF Switch Cisco Catalyst 3560E PoE
- Switch Cisco Catalyst 3560E 48 10/100/1000 PoE, 2*10GE(X2), 1150W, IPB s/w
Unikatowy kod produktu
WS-C3560E-48PD-SF
Producer
Cisco
Type of device
Switch
Product family
Cisco Catalyst
Software version
IP Base
Switching layer
3
Type of cooling
Fan
Type of dominant ports
Copper
Dominant ports speed
1G
Dominant ports quantity
48
Dominant Port Standard
RJ45
Uplink ports
Integrated
The speed of the uplink ports
10G
Number of uplink ports
2
Standard of uplink ports
X2
Standard PoE
PoE
Standard IEEE
802.3af
Number of PoE ports
48
PoE power available
740W
Maximum power per port
15.4W
Full-duplex switching speed
128 Gbps
64-byte forwarding speed
101.2 Mpps
Maksimum VLAN count
1005
VLAN IDs available
4094
Unicast MAC adres
8000
MTU
9198
Jumbo frame
9216
Stackable
No
Working temperature min.
0°C
Operating temperature max.
45°C
Working humidity min.
0%
Working humidity max.
95%
Typical noise during operation
48 dB
PSU power
1150W
Emergency power connector
Yes
Power redundancy
No
Flash memory
64 MB
DRAM memory
128 MB
Height
4.45 cm
Width
44.5 cm
Depth
55.2 cm
Weight
9.5 kg
MTBF
151196 h
