SKU: WS-C3560CX-8PT-S

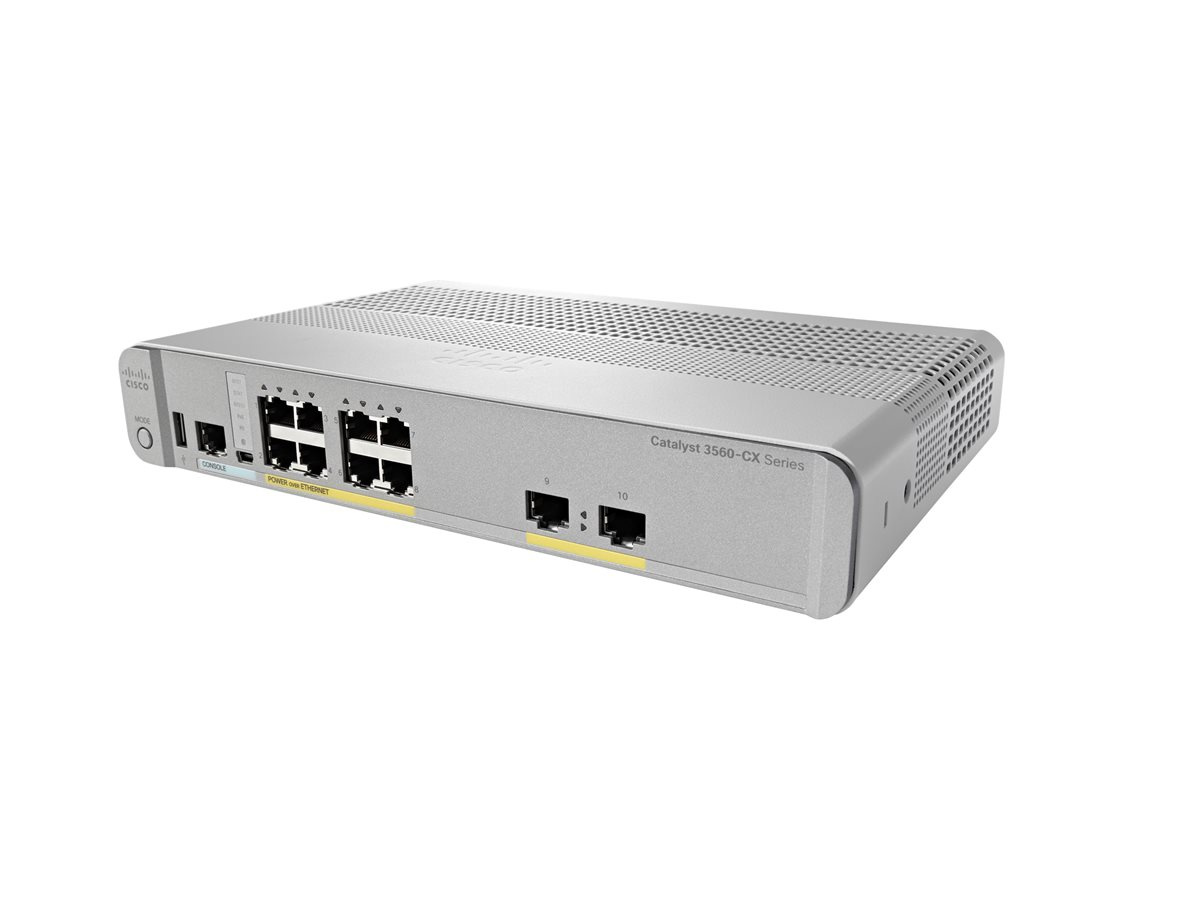

WS-C3560CX-8PT-S Switch Cisco Catalyst 3560-CX
- Switch Cisco Catalyst 3560-CX 8 GE PoE+, uplinks: 2x 1G copper (Cisco UPOE powered), IP Base
Unikatowy kod produktu
WS-C3560CX-8PT-S
Producer
Cisco
Type of device
Switch
Product family
Cisco Catalyst
Software version
IP Base
Switching layer
3
Type of cooling
Passive
Type of dominant ports
Copper
Dominant ports speed
1G
Dominant ports quantity
8
Dominant Port Standard
RJ45
Uplink ports
Integrated
The speed of the uplink ports
1G
Number of uplink ports
2
Standard of uplink ports
RJ45
Standard PoE
PoE+
Standard IEEE
802.3at
Number of PoE ports
8
PoE power available
146W
Maximum power per port
30W
Full-duplex switching speed
32 Gbps
64-byte forwarding speed
14.9 Mpps
Maksimum VLAN count
1023
VLAN IDs available
4094
Unicast MAC adres
9000
MTU
9000
Jumbo frame
9198
Network monitoring
NetFlow
Stackable
No
Working temperature min.
-5°C
Operating temperature max.
45°C
Working humidity min.
5%
Working humidity max.
95%
Typical noise during operation
24.9 dB
Noise during operation max.
29.5 dB
Emergency power connector
No
Power redundancy
No
Flash memory
128 MB
DRAM memory
512 MB
Port USB
Yes
Height
4.44 cm
Width
26.9 cm
Depth
17.7 cm
Weight
1.58 kg
MTBF
737740 h
