SKU: WS-C3560-24TS-S

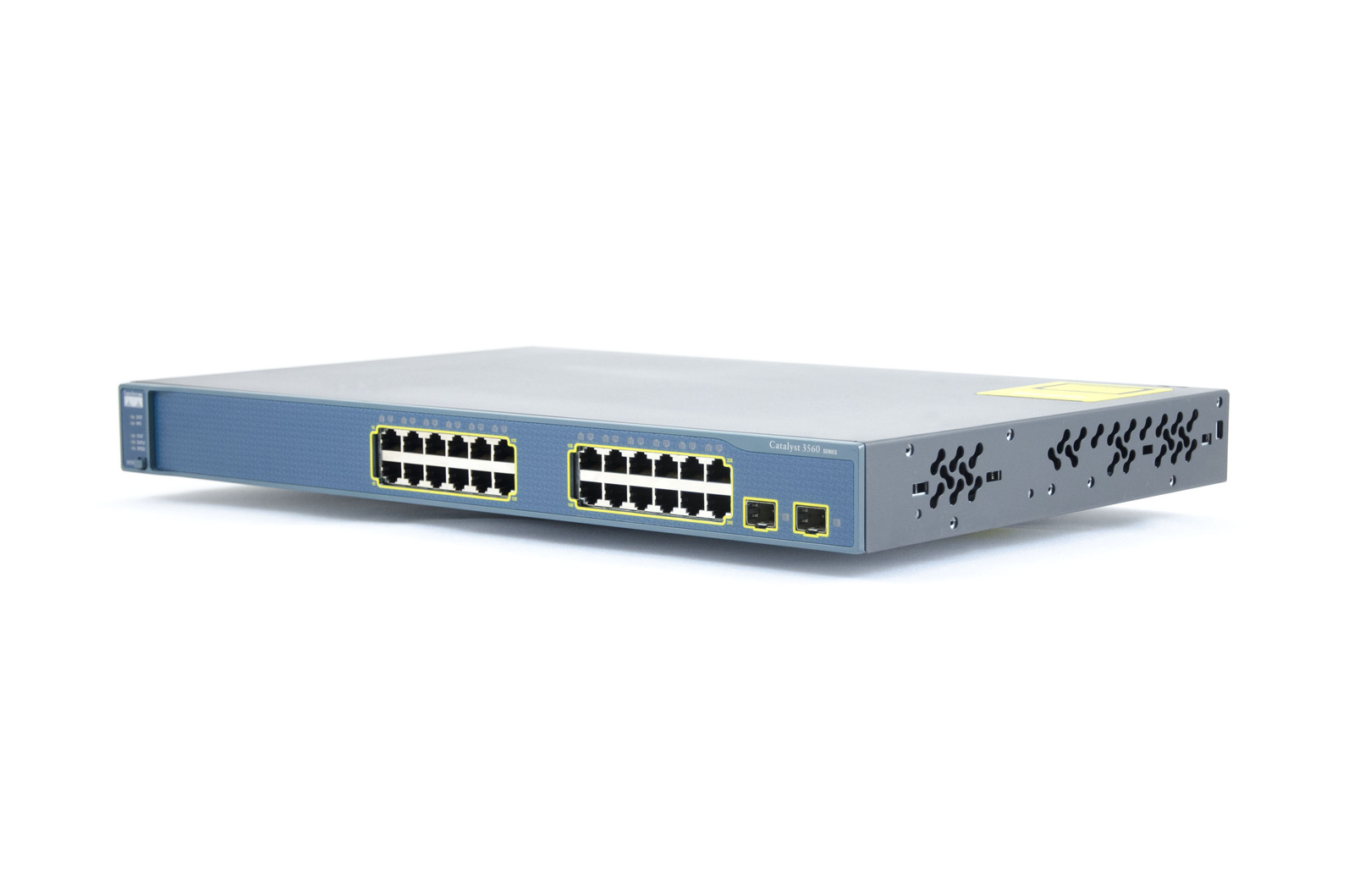

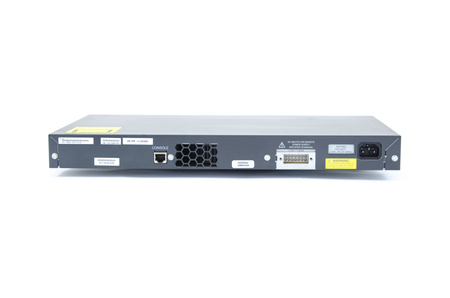

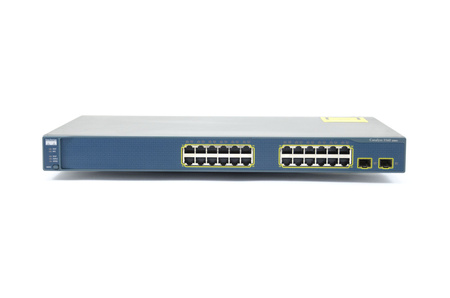

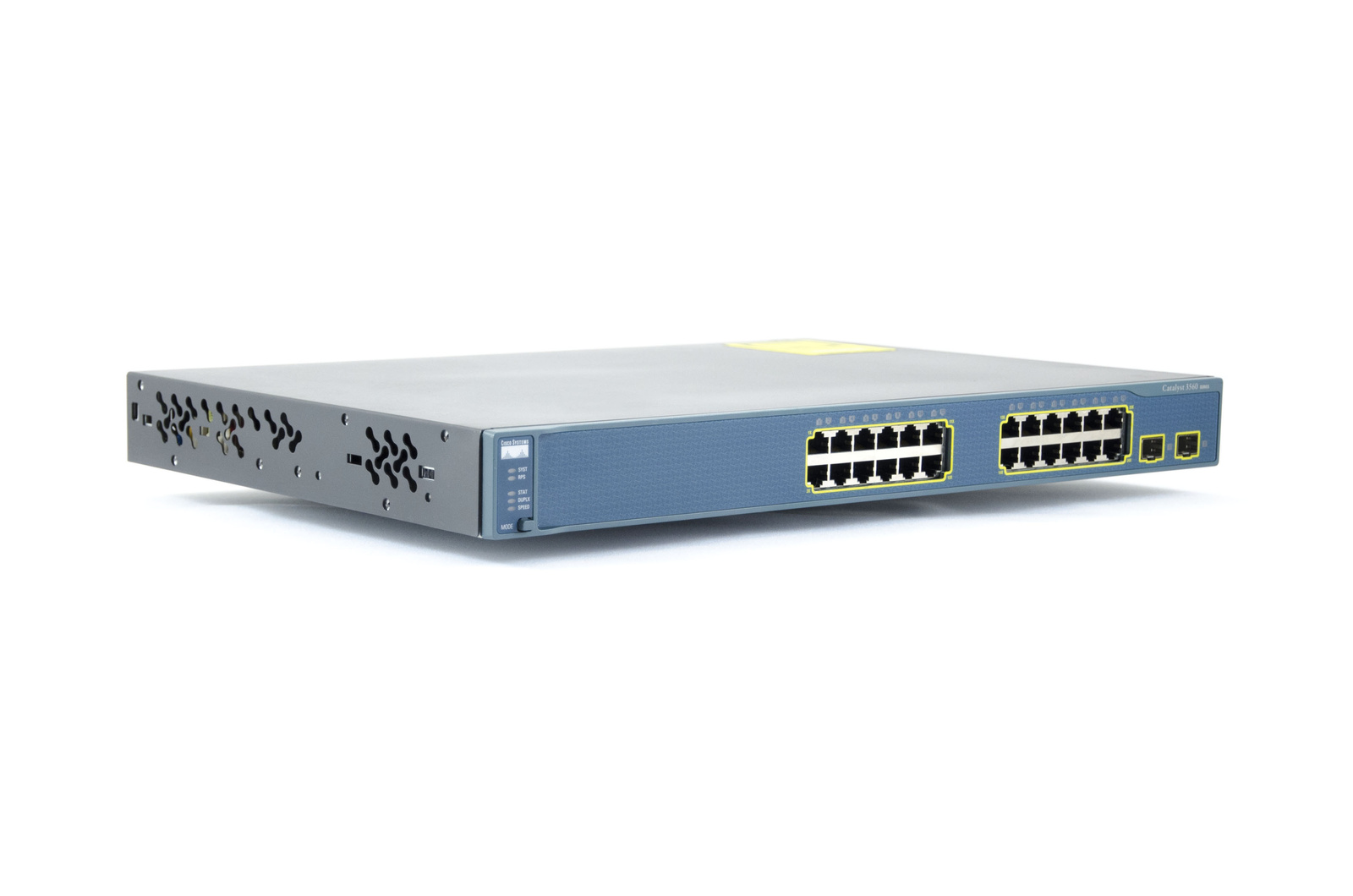

WS-C3560-24TS-S Switch Cisco Catalyst 3560 SFP
- 24x 10/100, 2x 1G SFP IP Base, L3
Unikatowy kod produktu
WS-C3560-24TS-S
Producer
Cisco
Type of device
Switch
Product family
Cisco Catalyst
Software version
IP Base
Switching layer
3
Type of cooling
Fan
Type of dominant ports
Copper
Dominant ports speed
100MB
Dominant ports quantity
24
Dominant Port Standard
RJ45
Uplink ports
Integrated
The speed of the uplink ports
1G
Number of uplink ports
2
Standard of uplink ports
SFP
Standard PoE
Brak
Full-duplex switching speed
32 Gbps
64-byte forwarding speed
6.5 Mpps
Maksimum VLAN count
128
VLAN IDs available
1024
Unicast MAC adres
12000
MTU
9000
Jumbo frame
9018
Stackable
No
Working temperature min.
0°C
Operating temperature max.
45°C
Working humidity min.
10%
Working humidity max.
85%
Typical noise during operation
42 dB
Minimal power consumption
24W
Maximum power consumption
27W
PSU power
45W
Emergency power connector
Yes
Power redundancy
No
Flash memory
32 MB
DRAM memory
128 MB
Height
4.4 cm
Width
44.5 cm
Depth
30 cm
Weight
3.9 kg
MTBF
326100 h
