SKU: WS-C2960S-48LPS-L

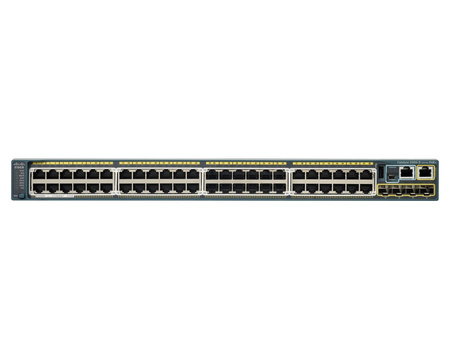

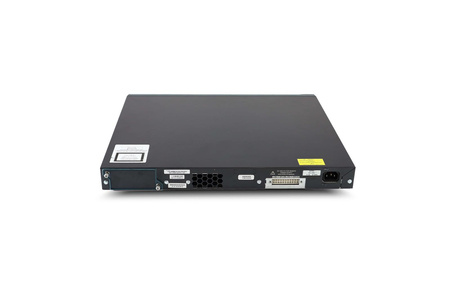

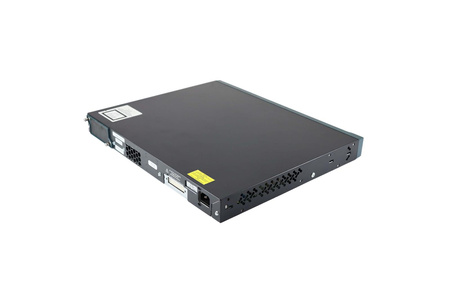

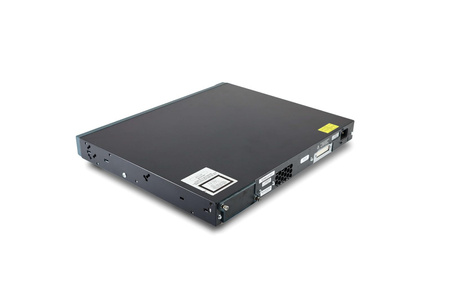

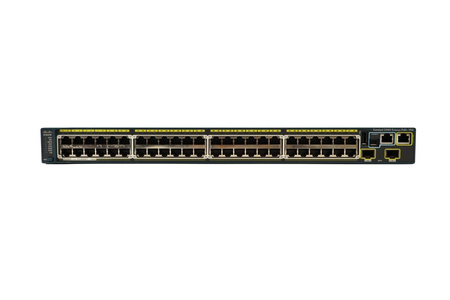

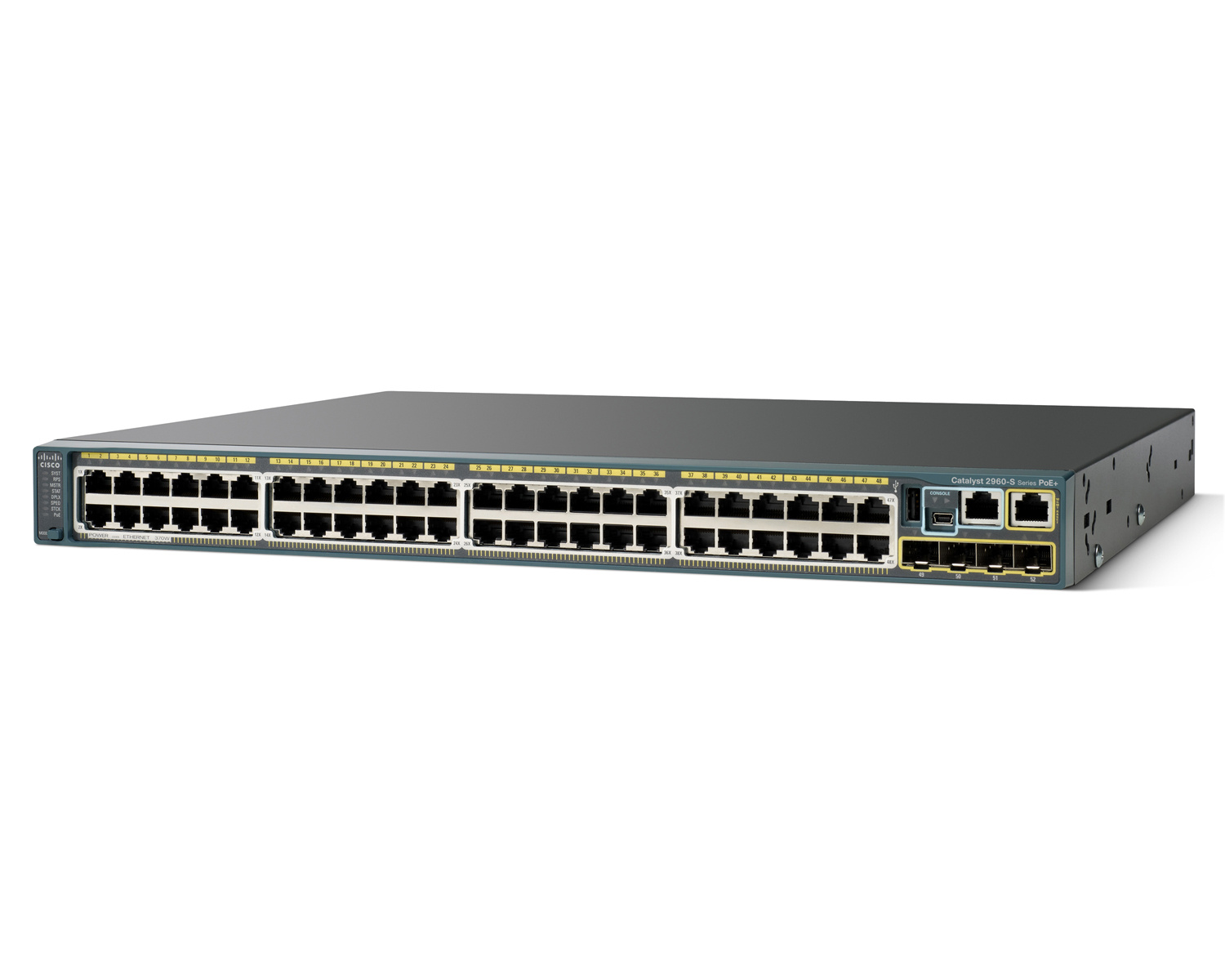

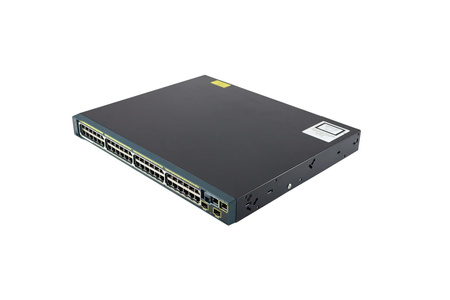

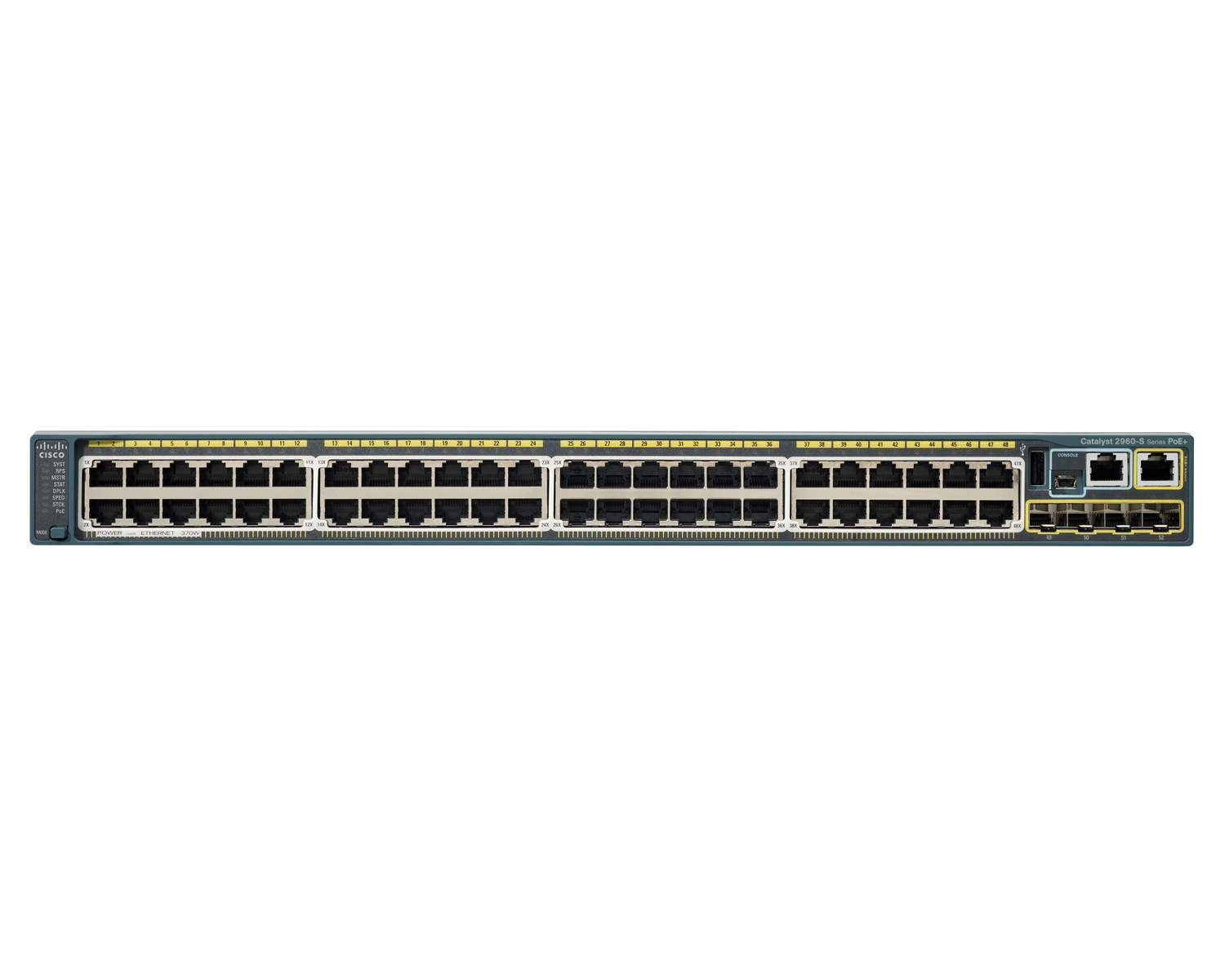

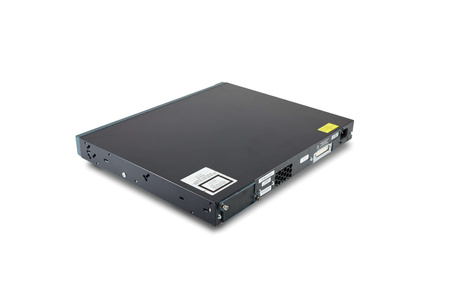

WS-C2960S-48LPS-L Switch Cisco Catalyst 2960S
- Switch Cisco Catalyst 2960S-48LPS-L 48x 1GE RJ45, 4x 1G SFP, LAN Base, PoE+ 370W

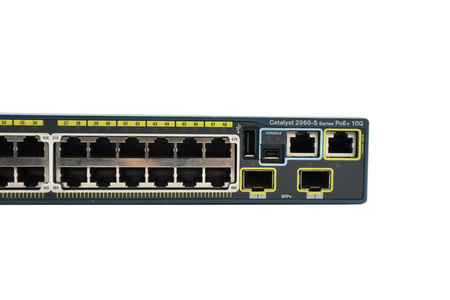

The Catalyst WS-C2960S-48LPS-L is a gigabit managed switch with 48 ports and 4 1G SFP uplink ports.
The switch can be used in stacks with other 2960S series switches, as well as with the new 2960X model for the optional stacking module. These stacks can be configured with a maximum of 4 switches. The CAB-STK-E is available in 50cm, 1m, and 3m lengths.
The switch offers PoE+ functionality on up to 48 ports. Budżet PoE dla tego switch wynosi 370 Watt.
This is a warstwy L2 switch and the LAN Base is equipped with a programmable LAN Base.
The model ten umożliwia zarządzanie poprzez linię komend CLI, poprzez interfejs graficzny GUI, jak również za pomocą Cisco Network Assistant.
Unikatowy kod produktu
WS-C2960S-48LPS-L
Producer
Cisco
Type of device
Switch
Product family
Cisco Catalyst
Software version
LAN Base
Switching layer
2
Type of cooling
Fan
Type of dominant ports
Copper
Dominant ports speed
1G
Dominant ports quantity
48
Dominant Port Standard
RJ45
Uplink ports
Integrated
The speed of the uplink ports
1G
Number of uplink ports
4
Standard of uplink ports
SFP
Standard PoE
PoE+
Standard IEEE
802.3at
Number of PoE ports
48
PoE power available
370W
Maximum power per port
30W
Full-duplex switching speed
176 Gbps
64-byte forwarding speed
77.4 Mpps
Maksimum VLAN count
255
VLAN IDs available
4094
Unicast MAC adres
8000
MTU
9198
Jumbo frame
9216
Stackable
Yes
Stack module included
No
Number of switches in the stack
4
Switching speed in stack
20 Gbps
Working temperature min.
-5°C
Operating temperature max.
45°C
Working humidity min.
10%
Working humidity max.
95%
Typical noise during operation
42 dB
Noise during operation max.
45 dB
Minimal power consumption
70W
Maximum power consumption
71W
PSU power
370W
Emergency power connector
Yes
Power redundancy
No
Flash memory
64 MB
DRAM memory
128 MB
Port USB
Yes
Height
4.5 cm
Width
44.5 cm
Depth
38.6 cm
Weight
5.7 kg
MTBF
205052 h
