SKU: WS-C2960S-48LPD-L

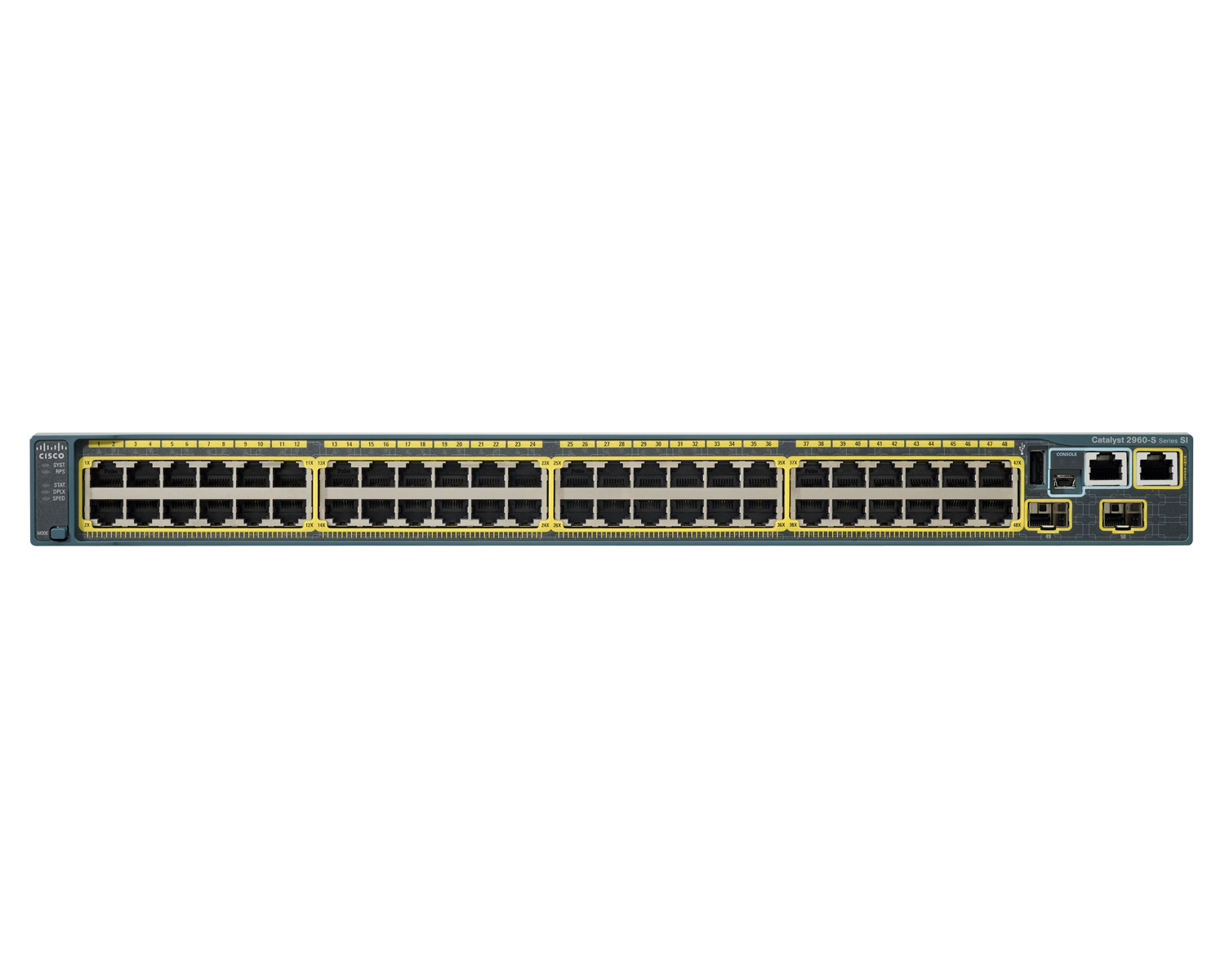

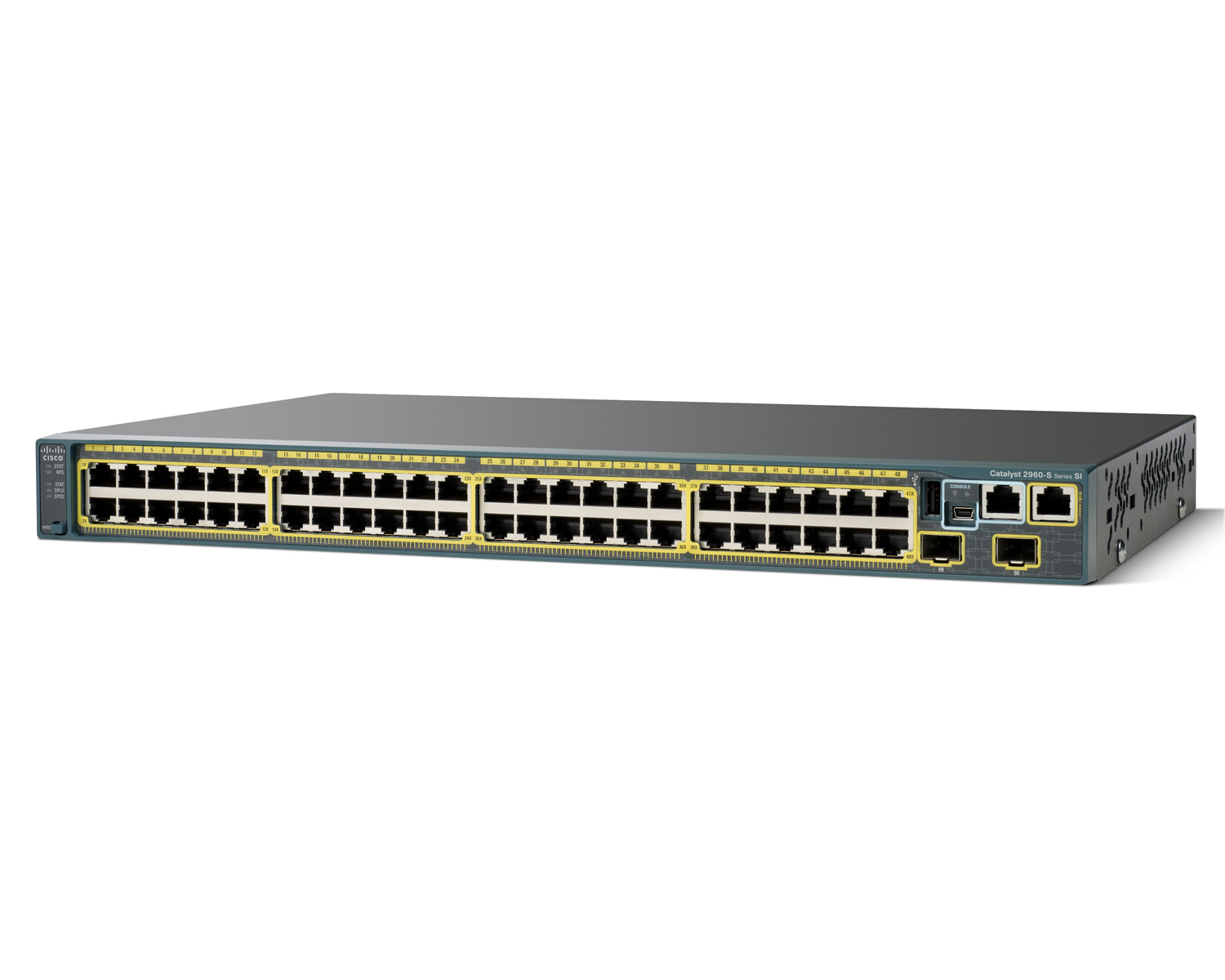

WS-C2960S-48LPD-L Switch Cisco Catalyst 2960S
- Switch Cisco Catalyst 2960S-48LPD-L 48x 1GE RJ45, 2x 10G SFP+, LAN Base, PoE+ 370W
Bardzo popularny model i mimo upływu lat nadal cieszy się ogromnym zainteresowaniem. Dlaczego ? Jest to switch warsty L2 z elementami warstawy L3 np routing statyczny. Posiada możliwość stackowania poprzez dokupienie odpowiedniego modułu
| Interfejsy 10/100/1000 | Interfejsy uplink | Wersja oprogramowania | Dostępna moc PoE | Moduł stack |
| 48 | 2x 10G SFP+ | LAN Base | 370W | Opcjonalny |
| Maksymalna ilość portów PoE+ (802.3at) | Maksymalna ilość portów PoE (802.3af) |
| 12 portów 30W | 24 porty 15.4W |
Unikatowy kod produktu
WS-C2960S-48LPD-L
Producer
Cisco
Type of device
Switch
Product family
Cisco Catalyst
Software version
LAN Base
Switching layer
2
Type of cooling
Fan
Type of dominant ports
Copper
Dominant ports speed
1G
Dominant ports quantity
48
Dominant Port Standard
RJ45
Uplink ports
Integrated
The speed of the uplink ports
10G
Number of uplink ports
2
Standard of uplink ports
SFP+
Rodzaj portów uplink
Światłowodowe
Standard PoE
PoE+
Standard IEEE
802.3at
Number of PoE ports
48
PoE power available
370W
Maximum power per port
30W
Full-duplex switching speed
176 Gbps
64-byte forwarding speed
101.2 Mpps
Maksimum VLAN count
255
VLAN IDs available
4094
Unicast MAC adres
8000
MTU
9198
Jumbo frame
9216
Stackable
Yes
Stack module included
No
Number of switches in the stack
4
Switching speed in stack
20 Gbps
Working temperature min.
-5°C
Operating temperature max.
45°C
Working humidity min.
10%
Working humidity max.
95%
Typical noise during operation
42 dB
Noise during operation max.
45 dB
Minimal power consumption
70W
Maximum power consumption
71W
PSU power
370W
Emergency power connector
Yes
Power redundancy
No
Flash memory
64 MB
DRAM memory
128 MB
Port USB
Yes
Height
4.5 cm
Width
44.5 cm
Depth
38.6 cm
Weight
5.7 kg
MTBF
198300 h
