SKU: WS-C2960L-48PS-LL

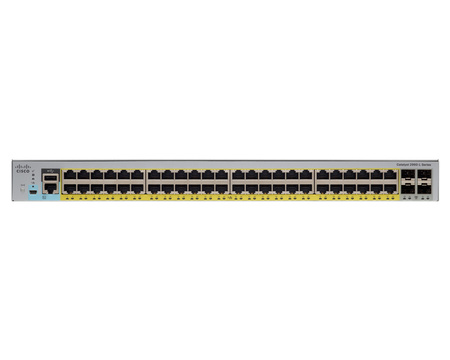

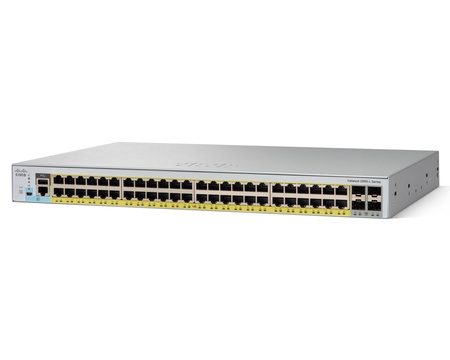

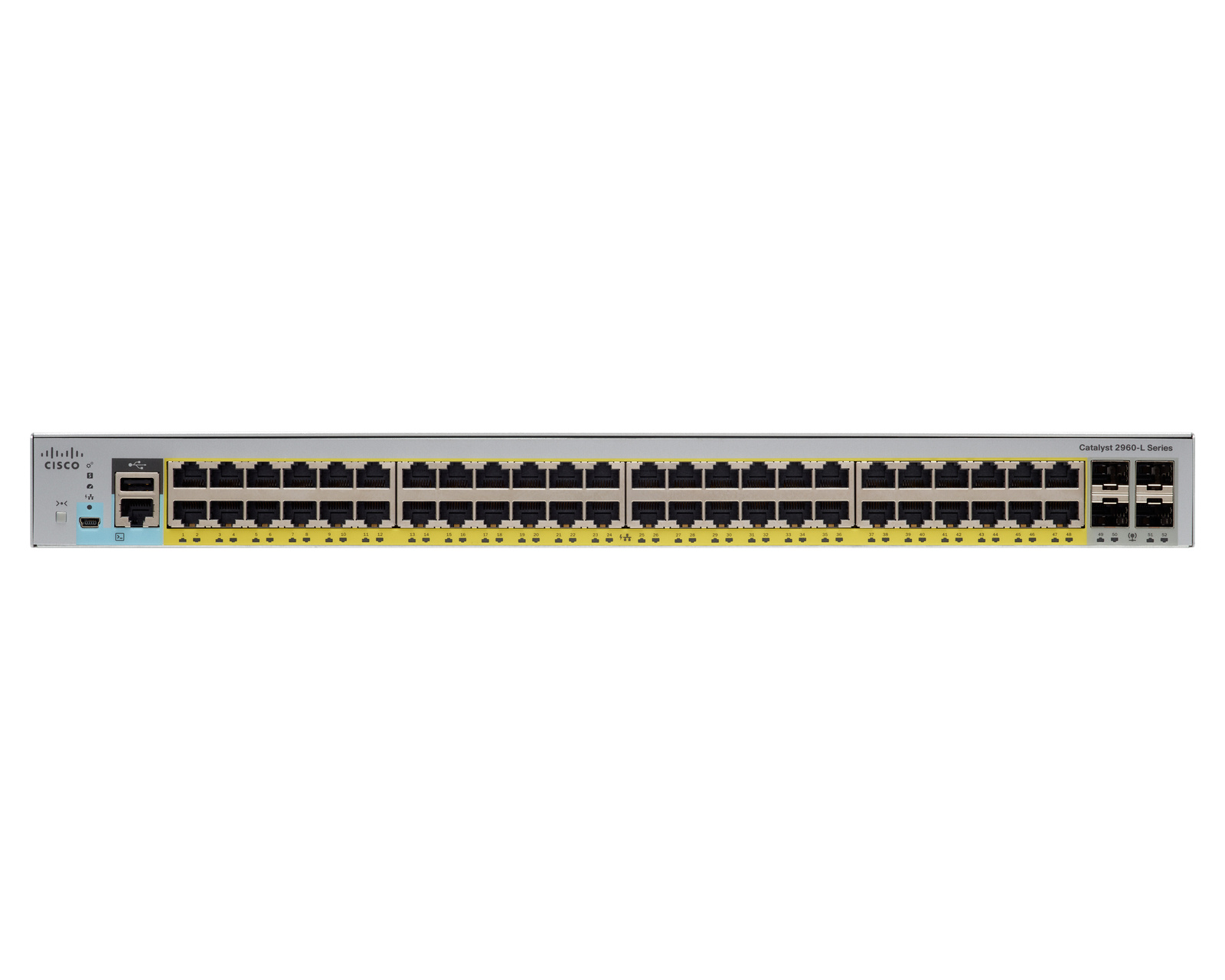

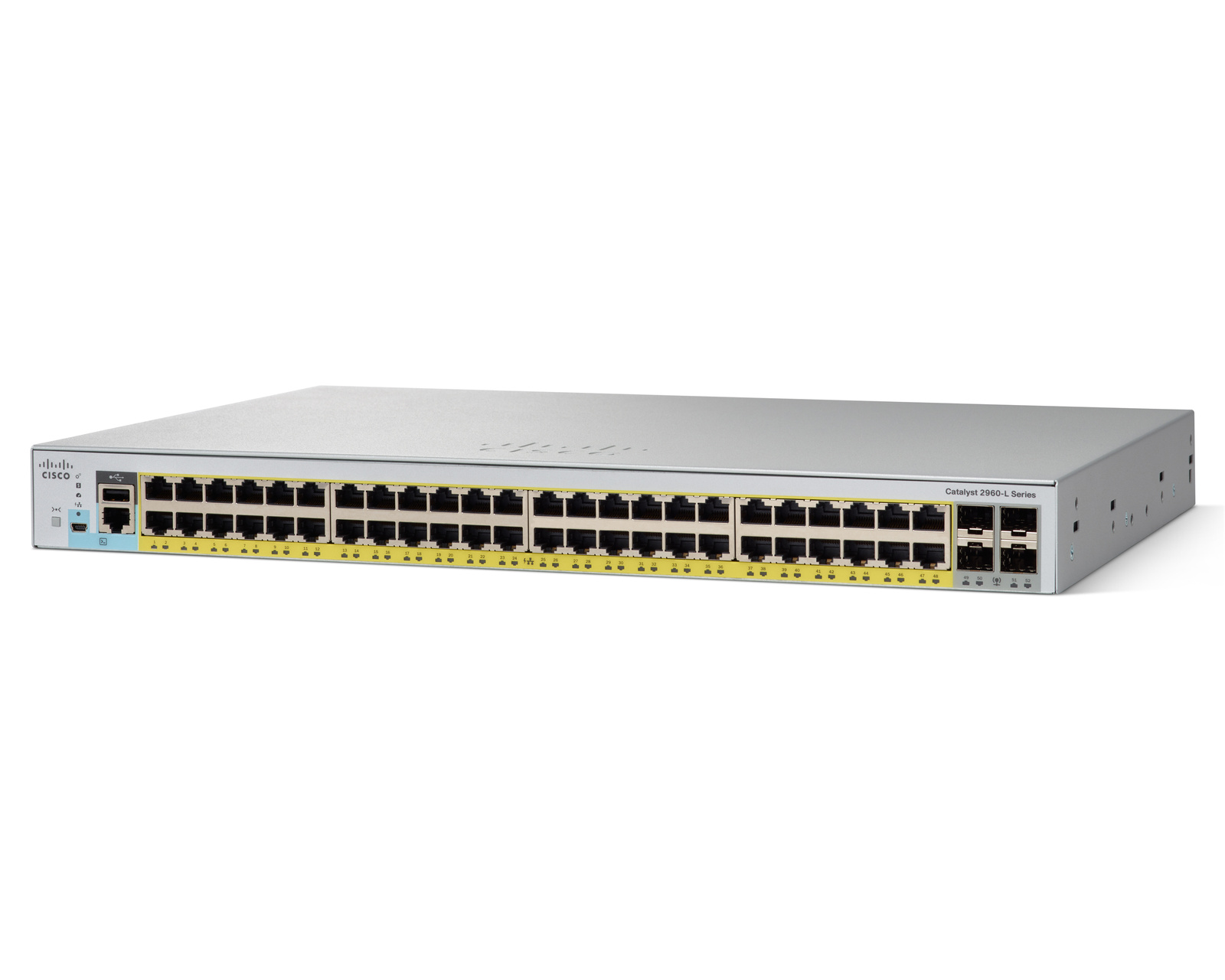

WS-C2960L-48PS-LL Switch Cisco Catalyst 2960L PoE+
- Switch Cisco Catalyst 2960L 48x 1GE [RJ45], PoE+ [370W] , 4x 1G [SFP], LAN Lite
| Interfejsy 10/100/1000 | Interfejsy uplink | Wersja oprogramowania | Dostępna moc PoE | Moduł stack |
| 48 | 4 SFP | LAN Lite | 370W | --- |
| Maksymalna ilość portów PoE+ (802.3at) | Maksymalna ilość portów PoE (802.3af) |
| 12 portów 30W | 24 porty 15.4W |
Unikatowy kod produktu
WS-C2960L-48PS-LL
Producer
Cisco
Type of device
Switch
Product family
Catalyst
Software version
LAN Lite
Switching layer
2
Type of cooling
Fan
Type of dominant ports
Copper
Dominant ports speed
1G
Dominant ports quantity
48
Dominant Port Standard
RJ45
Uplink ports
Integrated
The speed of the uplink ports
1G
Number of uplink ports
4
Standard of uplink ports
SFP
Standard PoE
PoE+
Standard IEEE
802.3at
Number of PoE ports
48
PoE power available
370W
Maximum power per port
30W
Full-duplex switching speed
104 Gbps
64-byte forwarding speed
77.38 Mpps
Maksimum VLAN count
255
VLAN IDs available
4094
Unicast MAC adres
16000
MTU
1500
Jumbo frame
10240
Stackable
No
Working temperature min.
-5°C
Operating temperature max.
45°C
Working humidity min.
5%
Working humidity max.
95%
Typical noise during operation
35 dB
Noise during operation max.
39 dB
Minimal power consumption
27.24W
Maximum power consumption
40.32W
Emergency power connector
No
Power redundancy
No
Flash memory
256 MB
DRAM memory
512 MB
Procesor CPU
800 MHz
Port USB
Yes
Height
4.4 cm
Width
44.5 cm
Depth
29.2 cm
Weight
4.57 kg
MTBF
437970 h
