SKU:
CGS-2520-16S-8PC

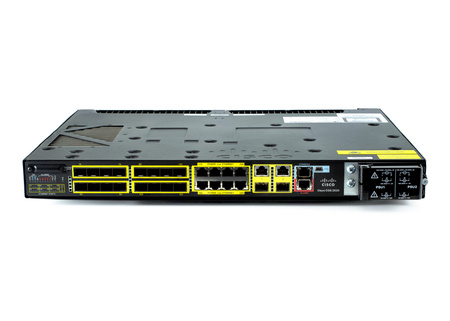

- Switch Cisco CGS 2520 Switch, front/rear cabling w/2GE, 16 x SFP 100Mb/s, 8 x 10/100 PoE, NO PSU
CGS-2520-16S-8PC
Unikatowy kod produktu
CGS-2520-16S-8PC
Producer
Cisco
Type of device
Switch
Product family
Cisco SMB
Software version
LAN Base
Switching layer
2
Type of cooling
Passive
Type of dominant ports
Fibre
Port speed [Mb/s]
100
Dominant ports quantity
8
Dominant Port Standard
RJ45
Uplink ports
Integrated
Number of uplink ports
2x 1G SFP
Rodzaj portów uplink
Combo
Standard PoE
PoE+
Standard IEEE
802.3at
Number of PoE ports
8
PoE power available
65W
Maximum power per port
30W
PoE with two power supplies.
Yes
PoE power available with two power supplies
170W
Full-duplex switching speed
8.8 Gbps
64-byte forwarding speed
6.55 Mpps
Maksimum VLAN count
4096
Unicast MAC adres
8000
MTU
9000
Stackable
No
Working temperature min.
-40°C
Operating temperature max.
70°C
Working humidity min.
5%
Working humidity max.
95%
Minimal power consumption
43W
Maximum power consumption
213W
Power redundancy
Yes
Redundant power supply included
No
Flash memory
1 GB
DRAM memory
256 MB
Port USB
Yes
Height
4.5 cm
Width
45 cm
Depth
36 cm
Weight
4.1 kg
MTBF
723250 h
