SKU: C9200L-24P-4X-E

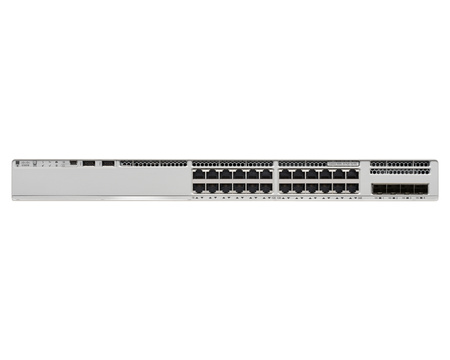

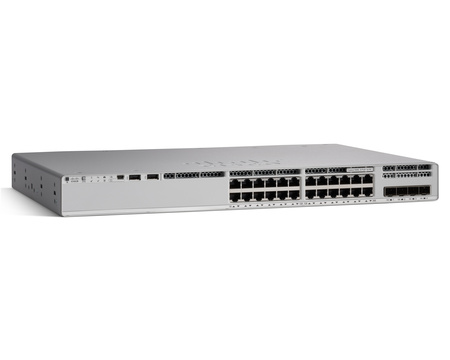

C9200L-24P-4X-E Switch Cisco Catalyst 9200L PoE+
- Switch Cisco Catalyst 9200L 24-port PoE+ 4x10G uplink Switch, Network Essentials
Unikatowy kod produktu
C9200L-24P-4X-E
Producer
Cisco
Type of device
Switch
Product family
Cisco Catalyst
Software version
Essentials
Switching layer
3
Type of cooling
Fan
Type of dominant ports
Copper
Dominant ports speed
1G
Dominant ports quantity
24
Dominant Port Standard
RJ45
Uplink ports
Integrated
The speed of the uplink ports
10G
Number of uplink ports
4
Standard of uplink ports
SFP+
Standard PoE
PoE+
Standard IEEE
802.3at
Number of PoE ports
24
PoE power available
370W
Maximum power per port
30W
PoE with two power supplies.
Yes
PoE power available with two power supplies
740W
Full-duplex switching speed
208 Gbps
64-byte forwarding speed
95.23 Mpps
Maksimum VLAN count
512
VLAN IDs available
4096
Unicast MAC adres
16000
MTU
9198
Jumbo frame
9198
Network monitoring
NetFlow
Stackable
Yes
Number of switches in the stack
8
Switching speed in stack
80 Gbps
Working temperature min.
-5°C
Operating temperature max.
45°C
Working humidity min.
5%
Working humidity max.
90%
Typical noise during operation
42 dB
Noise during operation max.
45 dB
Minimal power consumption
42.36W
Maximum power consumption
45.28W
PSU power
600W
Emergency power connector
No
Power redundancy
Yes
Redundant power supply included
No
Flash memory
4 GB
DRAM memory
2 GB
Procesor CPU
1.4 GHz
Port USB
Yes
Height
4.4 cm
Width
44.5 cm
Depth
28.8 cm
Weight
4.71 kg
MTBF
390310 h
