SKU: C9200-24P-A
C9200-24P-A

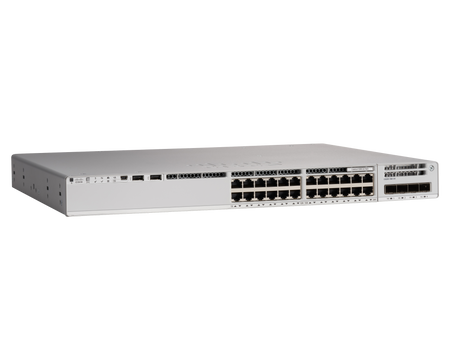

- Switch Cisco Catalyst 9200 24-port PoE+, Network Advantage
Unikatowy kod produktu
C9200-24P-A
Producer
Cisco
Type of device
Switch
Product family
Cisco Catalyst
Software version
LAN BaseLAN Base
Switching layer
3
Type of cooling
Fan
Type of dominant ports
Copper
Dominant ports speed
1G
Dominant ports quantity
24
Dominant Port Standard
RJ45
Uplink ports
Optional
Standard PoE
PoE+
Standard IEEE
802.3at
Number of PoE ports
24
PoE power available
370W
Maximum power per port
30W
PoE with two power supplies.
Yes
PoE power available with two power supplies
740W
Full-duplex switching speed
128 Gbps
64-byte forwarding speed
95.23 Mpps
Maksimum VLAN count
1024
VLAN IDs available
4096
Unicast MAC adres
32000
MTU
9198
Jumbo frame
9216
Network monitoring
NetFlow
Stackable
Yes
Number of switches in the stack
8
Switching speed in stack
160 Gbps
Working temperature min.
-5°C
Operating temperature max.
45°C
Working humidity min.
5%
Working humidity max.
90%
Typical noise during operation
42 dB
Noise during operation max.
45 dB
Minimal power consumption
43.38W
Maximum power consumption
47.18W
PSU power
600W
Emergency power connector
No
Power redundancy
Yes
Redundant power supply included
No
Flash memory
4 GB
DRAM memory
4 GB
Procesor CPU
1.4 GHz
Port USB
Yes
Height
4.4 cm
Width
44.5 cm
Depth
35 cm
Weight
5.5 kg
MTBF
422310 h
