SKU:
N9K-C93180YC-EX

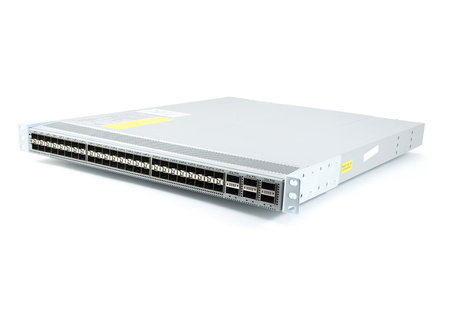

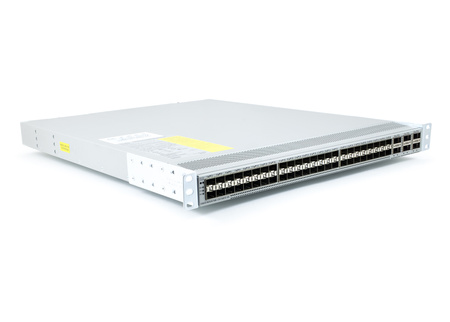

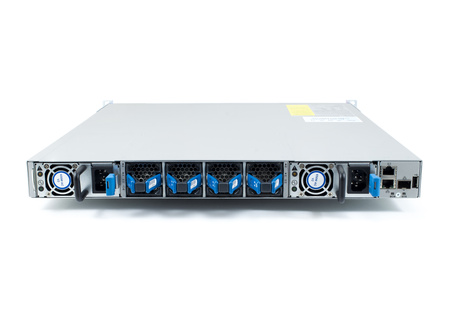

- PRZEŁĄCZNIK RDZENIOWY AGREGACYJNY CISCO NEXUS 9000
N9K-C93180YC-EX - 48x 1G/10G/25G SFP28, uplink 6x 40G/100G QSFP28, 3.6 Tbps, L3, Cisco Nexus 9300 Switch
Unikatowy kod produktu
N9K-C93180YC-EX
Producer
Cisco
Type of device
Switch
Product family
Cisco Nexus
Software version
Enterprise
Switching layer
3
Type of cooling
Fan
Manageable
Yes
Type of dominant ports
Fibre
Dominant ports speed
25G
Dominant ports quantity
48
Dominant Port Standard
SFP28
Uplink ports
Integrated
Number of uplink ports
6x 100G QSFP28
Rodzaj portów uplink
Światłowodowe
Standard PoE
Brak
Full-duplex switching speed
3.6 Tbps
Unicast MAC adres
3967
MTU
256000
Jumbo frame
9216
Stackable
No
Working temperature min.
0°C
Operating temperature max.
40°C
Working humidity min.
5%
Working humidity max.
95%
Typical noise during operation
48.5 dB
Noise during operation max.
77.8 dB
Minimal power consumption
210W
Maximum power consumption
470W
Emergency power connector
No
Power redundancy
Yes
Redundant power supply included
No
Flash memory
64 GB
DRAM memory
24 GB
Port USB
Yes
Height
4.4 cm
Width
43.9 cm
Depth
57.1 cm
Weight
7.8 kg
MTBF
390330 h
